Centralised Lubrication Systems

OIL MIST LUBRICATORS

In Oil Mist Lubricators a drop of oil is split by high velocity of airflow 3~5 kg/sq.cm with an air regulator. The quantity of oil can be adjusted with the help of an adjustment screw by rotating it clockwise or anti-clockwise.

The oil drop indicator is provided at the top to check the speed of the oil drop visually. The system is capable of running continuously. For automation, a solenoid valve & timer can be provided as an additional feature. Air pressure as well as oil drop setting is very important for efficient working. From 01 outlet to 12 outlets models are available as per the requirement.

Technical Specification

Mist Body Reservoir Capacity = 3 Ltrs.
Air Regulator = 2 kgs
Solenoid Valve = 220 v AC/24 V AC/DC
Installation = Vertical
Mounting Holes = 02 Holes of Dia 8.75mm Drill
Vertical Center = 100mm
Air Inlet Port = 1/4" Bsp

Area of Applications

Knitting Machines (Textiles)
Chains Lubrications
Cooling of Toolings
Spindle Bearing Lubrications
Lubrication of Gear Trains
And Many More as Per Customer Specifications

DRIP FIELD OILERS

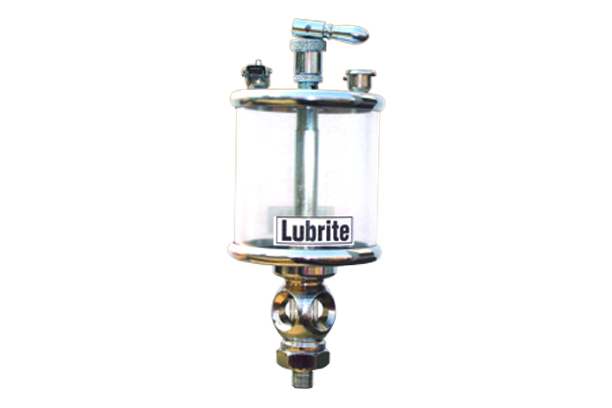

Drip Feed Oilers are single-point lubricators. They are mounted directly on the Lubrication Points. These oilers dispense oil by gravity from the transparent reservoir through the Needle Valve. The Needle Valve is joined with a Toggle Pin by which the Operator can turn the flow on/off manually. The flow of the oil is controlled by adjusting the Needle Valve and can be viewed from the inbuilt Sight Glass.

Oilers are available in different thread sizes from 1/8" BSP to 1/2" BSP.

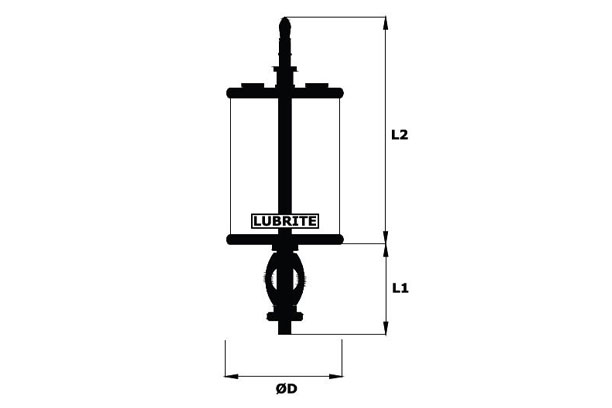

Model	Capacity	L1	L2	D
D - 15	15 ml	40	90	36
D - 35	35 ml	55	105	44
D - 75	75 ml	55	115	56
D - 150	150 ml	55	115	56
D - 250	255 ml	55	125	65
D - 450	450 ml	55	180	84
D - 750	750 ml	55	180	110
