Motorised Lubrication Systems
Motorised Lubrication System
Motorised Lubrication units are electric motor-driven pumps along with a reservoir, oil filter / breather, suction strainer, pressure relief valve & bleed valve. These units are suitable for Single Shot Automatic Oil Lubrication. These motorised Lubrication Units are to be run intermittently only. During Motors ON time (Normally 5 seconds) all the metering cartridges eject out a predetermined amount of oil at various points of the machine. During the motors OFF period (2-128 min) the metering cartridges get recharged for the next Lubrication Cycle. These units can be supplied with & without float & pressure switches as per customer requirements too. These automatic lubrication units can also be used with Liquid Grease (fluid grease) with minor adjustments .
LAU 03 FPS

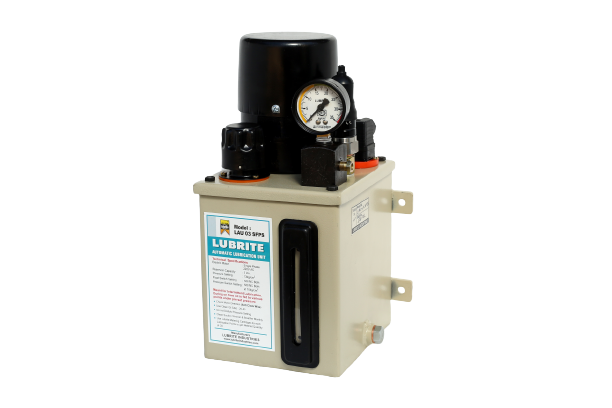

LAU 03 SFPS

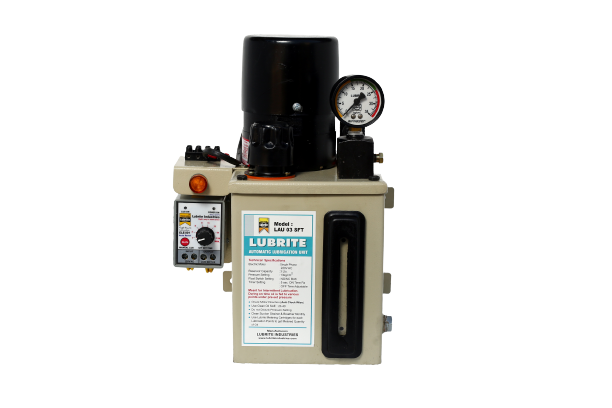

LAU 03 SFT

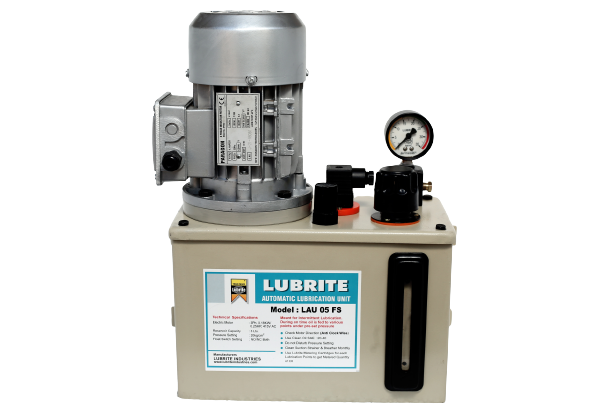

LAU 05 FS

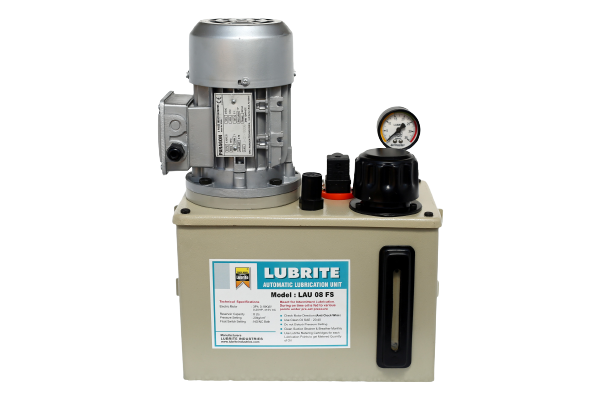

LAU 08 FS
Technical Specification
| MODEL | RESERVOIR CAPACITY IN SHEET METAL | DISCHARGE OF PUMP | MOTOR | FLOAT, PRESSURE SWITCH & TIMER | RELIEF VALVE SETTING AT | PRESSURE SWITCH SETTING AT | OVERALL Dimensions in mm LxBxH | Mounting Details in mm Hor x Ver |
|---|---|---|---|---|---|---|---|---|
| LAU 03 S | 3 LTR. | 1 LPM | 1 PH, 220 V, 90 W | X | 13 KG/SQ.CM | X | 190x190x320 | 170x100 |
| LAU 03 SFS | 3 LTR. | 1 LPM | 1 PH, 220 V, 90 W | FLOAT SWITCH | 13 KG/SQ.CM | X | 190x190x320 | 170x100 |
| LAU 03 SFPS | 3 LTR. | 1 LPM | 1 PH, 220 V, 90 W | FLOAT & PRESSURE SWITCH | 13 KG/SQ.CM | 10KG/PER SQ. CM | 190x190x320 | 170x100 |
| LAU 03 SFT | 3 LTR. | 1 LPM | 1 PH, 220 V, 90 W | FLOAT SWITCH & TIMER | 13 KG/SQ.CM | X | 235x190x320 | 170x100 |
| LAU 03 FPS 110V | 3 LTR. | 1 LPM | 1 PH, 110V, 90 W | FLOAT & PRESSURE SWITCH | 13 KG/SQ.CM | 10KG/PER SQ. CM | 190x190x320 | 170x100 |
| LAU 03 | 3 LTR. | 1 LPM | 3 PH, 415 V, 0.09 KW | X | 15 KG/SQ.CM | X | 190x190x320 | 170x100 |
| LAU 03 FS | 3 LTR. | 1 LPM | 3 PH, 415 V, 0.09 KW | FLOAT SWITCH | 15 KG/SQ.CM | X | 190x190x320 | 170x100 |
| LAU 03 FPS | 3 LTR. | 1 LPM | 3 PH, 415 V, 0.09 KW | FLOAT & PRESSURE SWITCH | 15 KG/SQ.CM | 12KG/PER SQ. CM | 190x190x320 | 170x100 |
| LAU 03FPS 220 V | 3 LTR. | 1 LPM | 3 PH, 220 V, 0.09 KW | FLOAT & PRESSURE SWITCH | 15 KG/SQ.CM | 12KG/PER SQ. CM | 190x190x320 | 170x100 |
| LAU 05 | 5 LTR. | 1 LPM | 3 PH, 415 V, 0.18 KW | X | 20 KG/SQ.CM | X | 330x170x400 | 310x100 |
| LAU 05 FS | 5 LTR. | 1 LPM | 3 PH, 415 V, 0.18 KW | FLOAT SWITCH | 20 KG/SQ.CM | X | 330x170x400 | 310x100 |
| LAU 05 FPS | 5 LTR. | 1 LPM | 3 PH, 415 V, 0.18 KW | FLOAT & PRESSURE SWITCH | 20 KG/SQ.CM | 15KG/PER SQ. CM | 330x170x400 | 310x100 |
| LAU 05 FPS 220 V | 5 LTR. | 1 LPM | 3 PH, 220 V, 0.18 KW | FLOAT & PRESSURE SWITCH | 20 KG/SQ.CM | 15KG/PER SQ. CM | 330x170x400 | 310x100 |
| LAU 05 SFT | 5 LTR. | 1 LPM | 1 PH, 220 V, 90 W | FLOAT SWITCH & TIMER | 15 KG/SQ.CM | X | 375x170x330 | 310x100 |
| LAU 05 SFPS | 5 LTR. | 1 LPM | 1 PH, 220 V, 90W | FLOAT & PRESSURE SWITCH | 15 KG/SQ.CM | 13KG/PER SQ. CM | 330x170x330 | 310x100 |
| LAU 08 | 8 LTR. | 3 LPM | 3 PH, 415 V, 0.18 KW | X | 25 KG/SQ.CM | X | 350x200x430 | 330x100 |
| LAU 08 FS | 8 LTR. | 3 LPM | 3 PH, 415 V, 0.18 KW | FLOAT SWITCH | 25 KG/SQ.CM | X | 350x200x430 | 330x100 |
| LAU 08 FPS | 8 LTR. | 3 LPM | 3 PH, 415 V, 0.18 KW | FLOAT & PRESSURE SWITCH | 25 KG/SQ.CM | 20KG/PER SQ. CM | 350x200x430 | 330x100 |
| LAU 08 FPS 220 V | 8 LTR. | 3 LPM | 3 PH, 220 V, 0.18 KW | FLOAT & PRESSURE SWITCH | 25 KG/SQ.CM | 20KG/PER SQ. CM | 350x200x430 | 330x100 |
