Hand Operated Lubricators
Hand Operated Lubricators
Hand operated single shot pumps are spring returned piston type pumps. The piston is operated by pulling the cam handle.
These pumps are suitable for manual centralized lubrication for light duty machines such as Small Power Presses, Die Punching Machines, Grinding Machines, pouch Packing Machines, Pharmaceutical Machines and etc. Normally these pumps are recommended for the machines with lubrication points within 2-20.
HCL - 16

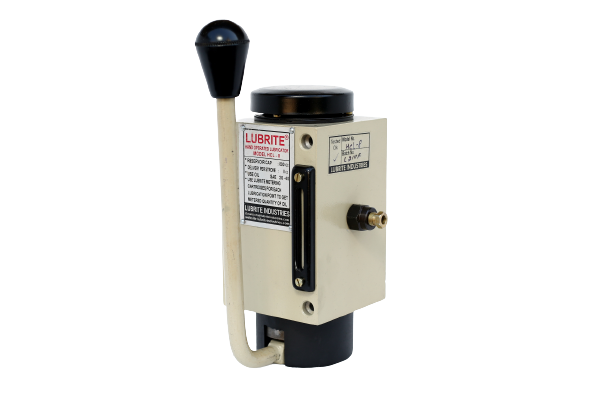

HCL - 8

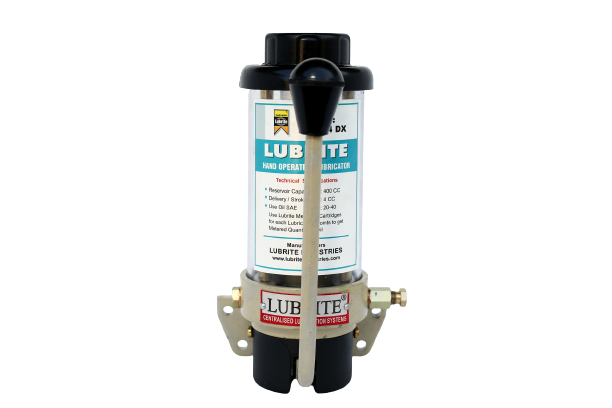

HCL - 4DX

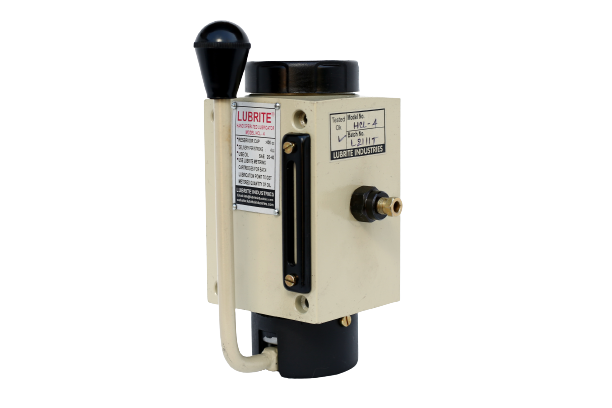

HCL - 4

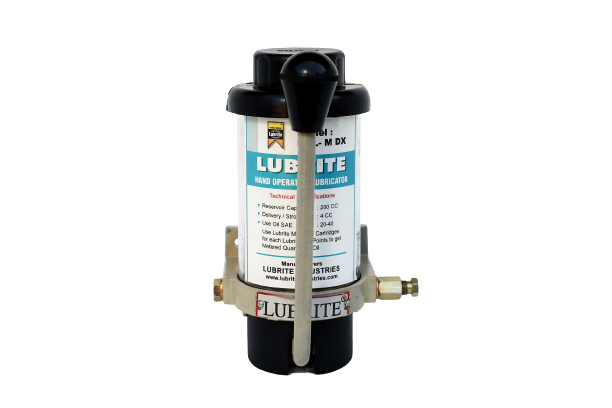

HCL - MDX

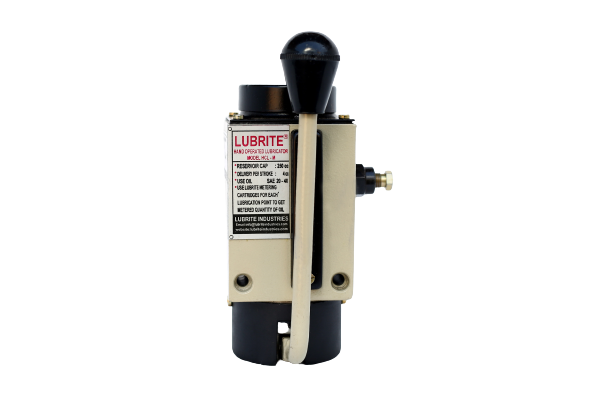

HCL - M
Technical Specification
| MODEL | RESERVOIR CAPACITY | DISCHARGE PER STROKE IN CC | OVERALL DIMENSIONS IN MM | MOUNTING DETAILS IN MM | MOUNTING BOLT USED |
|---|---|---|---|---|---|
| IN CC | L X B X H | HOR X VER | |||
| HCL-M | 200 | 4 | 100 X 110 X 180 | 55 X 00 | L KEY BOLT M6 X 75 |
| HCL-4 | 400 | 4 | 135 X 125 X 210 | 65 X 105 | L KEY BOLT M6 X 90 |
| HCL-8 | 800 | 8 | 150 X 140 X 255 | 72 X 120 | L KEY BOLT M6 X 100 |
| HCL-16 | 1600 | 10 | 165 X 190 X 300 | 140 X 100 | HEX BOLT M6 X 25 |
| HCL- MDX | 200 | 4 | 120 X 125 X 200 | 75 X 25 | HEX BOLT M6 X 30 |
| HCL- 4DX | 400 | 4 | 130 X 135 X 240 | 105 X 85 X 25 | HEX BOLT M6 X 30 |
| HCL- 8DX | 800 | 8 | 150 X 160 X 265 | 125 X 100 X 25 | HEX BOLT M6 X 30 |
