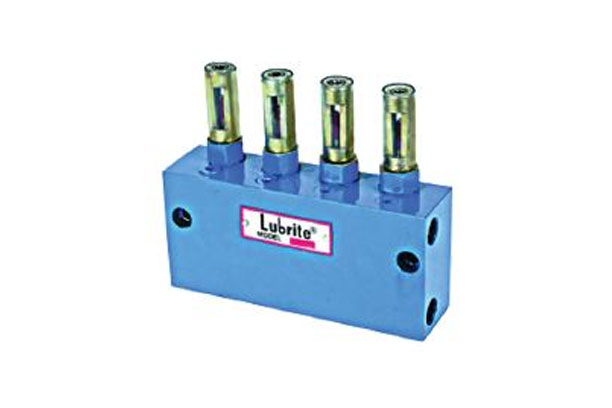

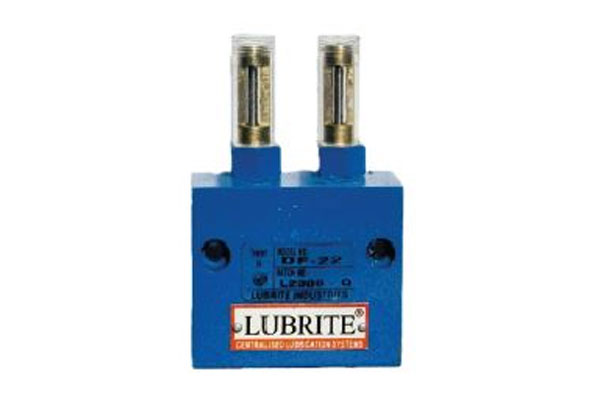

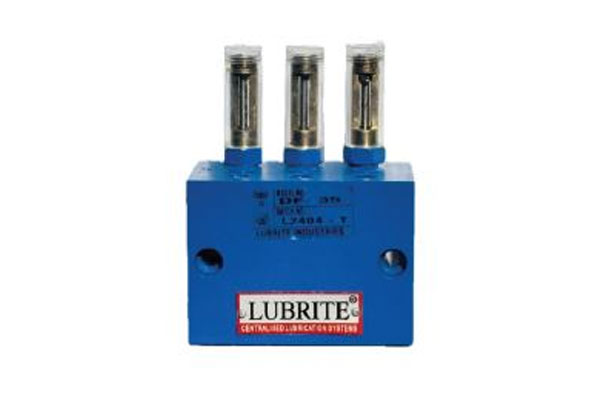

Dual Line Dose Feeders

Dual Line Dose Feeders

Dose Feeders are the dual line adjustable measuring valve blocks employed in the Centralised dual - line Grease Lubrication System to deliver measured quantity of lubricant to the bearing points under preset pressure. These are mounted across the two lines and outlet are connected to the bearing points by means of suitable pipe line.


Operations

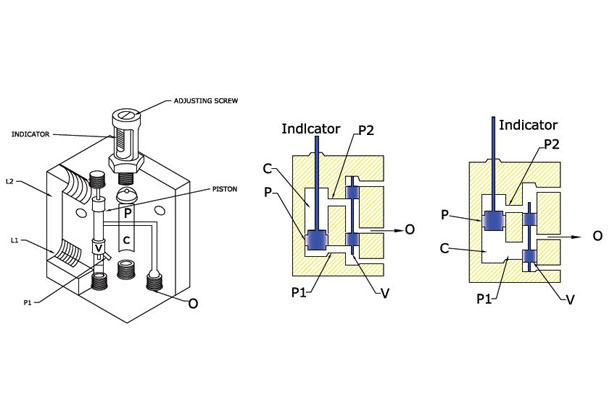

Grease inlets are L1 and L2 and grease outlet is O . During one cycle , grease enters through L1 and subsequently pushes the shuttel valve V up, there by opening port P1 via the under cut of the shuttle valve V. Grease now enters through port P1 into the bottom of chamber C and pushes piston P up. Consequently, grease collected in the top of chamber C during the earlier cycle is pushed out by the piston P in its upwards movement through port P2 via the under cut of shuttle valve V, Horizontal cross bore and finaly out of the feeder through O.In the next cycle similarly grease enters through L2 pushes shuttle valve V down enters top of chamber C through port P2 pushes the piston P down, thereby driving out the grease collected in the bottom of chamber C during the first cycle through port P1 via shuttle valve under cut, horizontal cross bore and finally out through outlet O. Right Way to Lubrication 2



DUAL LINE DOSE FEEDERS SERIES 1

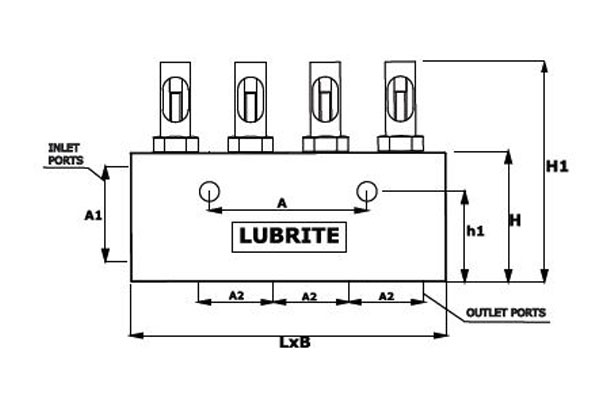

Model L B H A A1 A2 H1 h1 Discharge/ Per Stroke (IN C.C) Pressure MIN/MAX(IN BAR) No.of Outlets(Bottom Side Only) Inlet Port THD Outlet Port THD Mounting Bolts
DF-11 46 38 65 * 43 - 110 43 0.5-1.5 35-400 1 3/8"x19 BSP 1/4" BSP M8X40
DF-21 78 38 65 * 43 30 110 43 0.5-1.5 35-400 1 3/8"x19 BSP 1/4" BSP M8X40
DF-31 108 38 65 30 43 30 110 43 0.5-1.5 35-400 3 3/8"x19 BSP 1/4" BSP M8X40
DF-41 138 38 65 30 43 30 110 43 0.5-1.5 35-400 4 3/8"x19 BSP 1/4" BSP M8X40

DUAL LINE DOSE FEEDERS SERIES 2

Model L B H A A1 A2 H1 h1 Discharge/ Per Stroke (IN C.C) Pressure MIN/MAX(IN BAR) No.of Outlets(Bottom Side Only) Inlet Port THD Outlet Port THD Mounting Bolts
DF-12 55 48 80 32 52 -- 139 50 1.5-5 35-400 1 3/8"x19 BSP 1/4" BSP M8X50
DF-22 92 48 80 72 52 38 139 50 1.5-5 35-400 2 3/8"x19 BSP 1/4" BSP M8X50
DF-32 130 48 80 72 52 38 139 50 1.5-5 35-400 3 3/8"x19 BSP 1/4" BSP M8X50
DF-42 168 48 80 148 52 38 139 50 1.5-5 35-400 4 3/8"x19 BSP 1/4" BSP M8X50

DUAL LINE DOSE FEEDERS SERIES 3

Model L B H A A1 A2 H1 h1 Discharge/ Per Stroke (IN C.C) Pressure MIN/MAX(IN BAR) No.of Outlets(Bottom Side Only) Inlet Port THD Outlet Port THD Mounting Bolts
DF-13 46 57 65 26 43 - 110 32.5 0.5-1.5 35-400 2 3/8"x19 BSP 1/4" BSP M8X60
DF-23 78 57 65 26 43 30 110 32.5 0.5-1.5 35-400 4 3/8"x19 BSP 1/4" BSP M8X60
DF-33 108 57 65 88 43 30 110 32.5 0.5-1.5 35-400 6 3/8"x19 BSP 1/4" BSP M8X60
DF-43 148 57 65 118 43 30 110 32.5 0.5-1.5 35-400 8 3/8"x19 BSP 1/4" BSP M8X60

DUAL LINE DOSE FEEDERS SERIES 4

Model L B H A A1 A2 H1 h1 Discharge/ Per Stroke (IN C.C) Pressure MIN/MAX(IN BAR) No.of Outlets(Bottom Side Only) Inlet Port THD Outlet Port THD Mounting Bolts
DF-14 54 62 80 34 52 - 140 40 1.5-5 35-400 2 3/8"x19 BSP 1/4" BSP M8X60
DF-24 92 62 80 72 52 38 140 40 1.5-5 35-400 4 3/8"x19 BSP 1/4" BSP M8X60
DF-34 130 62 80 72 52 38 140 40 1.5-5 35-400 6 3/8"x19 BSP 1/4" BSP M8X60
DF-44 168 62 80 148 52 38 140 40 1.5-5 35-400 8 3/8"x19 BSP 1/4" BSP M8X60

DUAL LINE DOSE FEEDERS SERIES 5

Model L B H A A1 A2 H1 h1 Discharge/ Per Stroke (IN C.C) Pressure MIN/MAX(IN BAR) No.of Outlets(Bottom Side Only) Inlet Port THD Outlet Port THD Mounting Bolts
DF-15 46 57 80 26 52 - 140 40 0.5-3.0 35-400 2 3/8"x19 BSP 1/4" BSP M8X60
DF-25 78 57 80 58 52 30 140 40 0.5-3.0 35-400 4 3/8"x19 BSP 1/4" BSP M8X60
DF-35 108 57 80 58 52 30 140 40 0.5-3.0 35-400 6 3/8"x19 BSP 1/4" BSP M8X60
DF-45 138 57 80 104 52 30 140 40 0.5-3.0 35-400 4 3/8"x19 BSP 1/4" BSP M8X60
