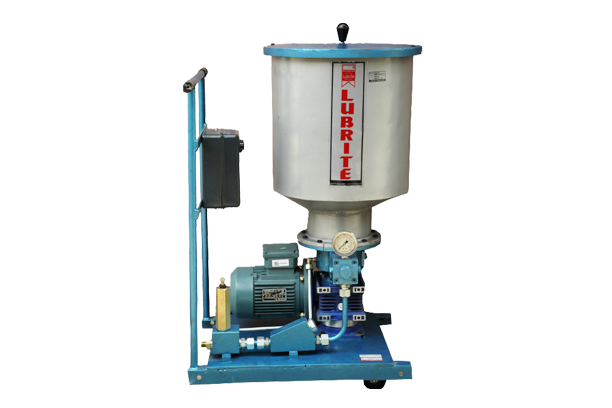

The Lubrite Automatic Single Line Grease Pump is a robust and efficient system featuring a reciprocating motor-driven plunger pump integrated with an inbuilt gearbox. It is equipped with a large grease reservoir that includes a follower plate and a telltale rod for visual monitoring of grease levels. A limit switch positioned at the top of the reservoir provides accurate indication of both full and empty grease levels.
The pump outlet is connected to a pressure relief valve to ensure safe and reliable operation. Additionally, a bleed valve is incorporated into the pump body to release trapped air from the system. Before operation, the bleed valve should remain open until a steady flow of grease is observed.
The entire system is governed by an electric control panel, providing seamless automation and control for consistent lubrication performance.
Specification | AGP-15 | AGP-50 | AGP-100 |
---|---|---|---|
Reservoir Capacity | 15 kg | 50 kg | 100 kg |
Discharge Per Stroke | 35 gm | 125 gm | 250 gm |
Maximum Pressure | 150 kg/sq.cm. | 300 kg/sq.cm | 400 kg/sq.cm |
Electric Motor 3 Phase, 415 V AC | 0.5 HP | 1.0 Hp | 2.0 Hp |
Pressure Relief Value (In Bar) | 150 kg. sq.cm | 300 kg/ sq.cm | 400 kg/ sq.cm |
Pressure Gauges (In Bar) | o to 210 kg/sq.cm | 0 to 500 kg/sq.cm | 0 to 600 kg/sq.cm |
Working Pressure | 100 kg/sq.cm | 200 kg/sq.cm | 300 kg/sq.cm |
Overall Dimension in MM | 500X300X1300 MM | 700X400X1600 MM | 800X500X2000 MM |
* Recommended Grease NLGI 00, 0, 1 & 2

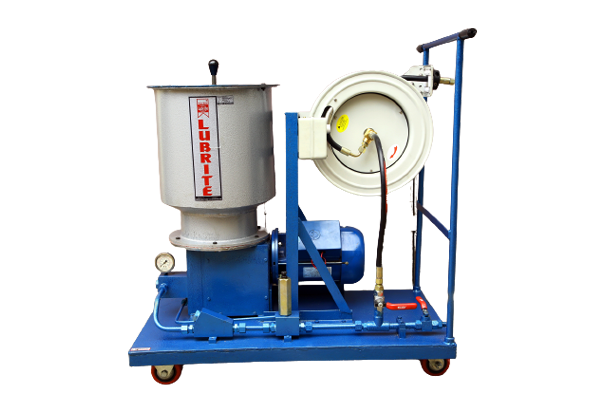

• Model- AGP 15, 50,100 are also available with trolley & hose reels.
• These grease pumps are available with control panel & without control panel.
