LUBRITE Deluxe Lubrication Units are the same in working principle but the metal reservoir r is replaced with transparent to get the visual look of the oil level in the reservoir. These units are widely accepted in CNC machines, SPM's, Pharmaceutical Machines, Printing & Packaging Machines and all types of sophisticated machines. If desired, these units can be supplied without float & pressure switch as per customer requirements. Units for liquid grease (fluid grease) are also manufactured.
MODEL | RESERVOIR CAPACITY IN TRANSPARENT | DISCHARGE OF PUMP | MOTOR | FLOAT/PRESSURE SWITCH & TIMER | RELIEF VALVE SETTIN AT | PRESSURE SWITCH SETTING AT | OVERALL Dimensions in mm LxBxH | Mounting Details in mm Horizotal |
---|---|---|---|---|---|---|---|---|
LDU 03 S | 3 LTR. | 1 LPM | 1 PH, 220 V, 90 W | X | 13 KG | X | 215x145x300 | 170 |
LDU 03 SFS | 3 LTR. | 1 LPM | 1 PH, 220 V, 90 W | FLOAT SWITCH | 13 KG | X | 215x145x300 | 170 |
LDU 03 SFPS | 3 LTR. | 1 LPM | 1 PH, 220 V, 90 W | FLOAT & PRESSURE SWITCH | 13 KG | 10KG/PER SQ. CM | 215x145x300 | 170 |

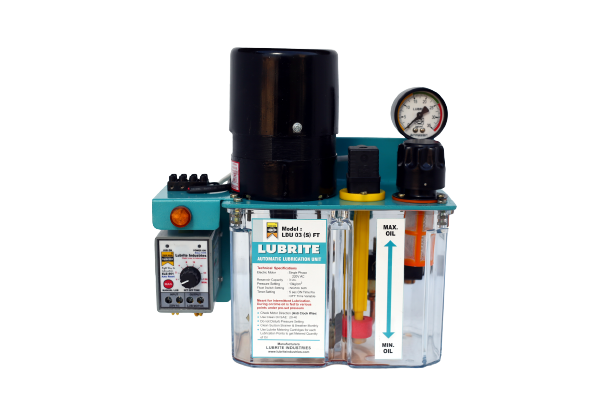

LDU 03 SFT | 3 LTR. | 1 LPM | 1 PH, 220 V, 90 W | FLOAT SWITCH & TIMER | 13 KG | X | 280x145x300 | 170 |
LDU 03 FPS 110V | 3 LTR. | 1 LPM | 1 PH, 110V, 90 W | FLOAT & PRESSURE SWITCH | 13 KG | 10KG/PER SQ. CM | 215x145x300 | 170 |
LDU 03 | 3 LTR. | 1 LPM | 3 PH, 415 V, 0.09 KW | X | 15 KG | X | 215x145x300 | 170 |
LDU 03 FS | 3 LTR. | 1 LPM | 3 PH, 415 V, 0.09 KW | FLOAT SWITCH | 15 KG | X | 215x145x300 | 170 |

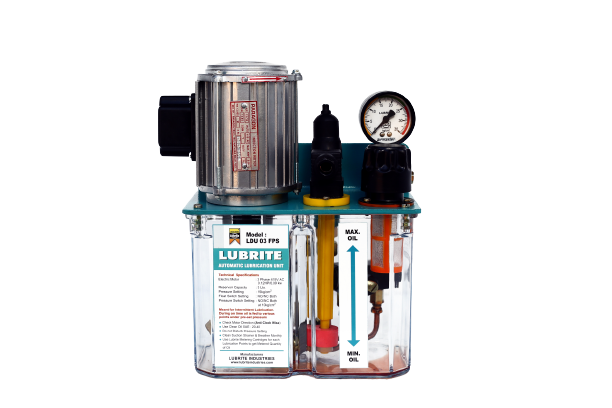

LDU 03 FPS | 3 LTR. | 1 LPM | 3 PH, 415 V, 0.09 KW | FLOAT & PRESSURE SWITCH | 15 KG | 12KG/PER SQ. CM | 215x145x300 | 170 |
LDU 03FPS 220 V | 3 LTR. | 1 LPM | 3 PH, 220 V, 0.09 KW | FLOAT & PRESSURE SWITCH | 15 KG | 12KG/PER SQ. CM | 215x145x300 | 170 |
