Automatic Dual Line Lubrication Pumps
AUTOMATIC DUAL LINE LUBRICATION PUMPS

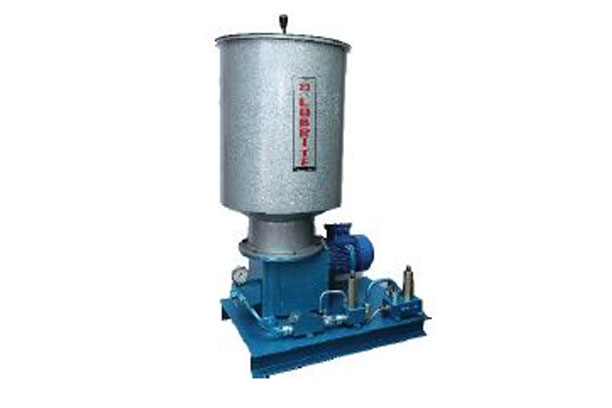

The Lubrite Dual Line system is designed to provide a positive means of dispensing lubricant to the bearings on a machine from a central pumping source. The versatile rugged equipment offers flexibility in design and economy in operation. Lubrite Dual Line Pump consists of a Reciprocating Motor Driven Plunger Pump with Inbuilt Gear Box. The Pump incorporates a large grease reservoir with a heavy follower plate and telltale rod. The limit switch is provided on the top of the reservoir to indicate full and empty levels of lubricant. On the pump outlet, a check valve, pressure relief valve, bleed valve, and inline filters are provided and it is connected to the direction control valve (Reversing Value). The DC Valve gets a signal from pressure switches (end pressure relay) mounted on each line. The whole system is controlled with an electric control panel.
| Model | LDL 50 | LDL 100 | LDL 150 |
|---|---|---|---|
| RESERVIOR CAPACITY | 50KG | 100KG | 150KG |
| DISCHARGE PER MINUTE | 125GM | 250GM | 500GM |
| WORKING PRESSURE | 125 kg/cm | 250 kg/cm | 350 kg/cm |
| MAXIMUM PRESSURE | 300kg/cm | 350 kg/cm | 400 kg/cm |
| ELECTRIC MOTOR | 1HP | 1.5HP | 3HP |
| 3PH 1500 RPM, 415V | |||
| OVERALL DIMENSIONS (LxBxH) | 695x445X1450 | 695x445x1755 | 775x505x2300 |
Operations
A central pumping station pushes lubricant through a reversing value (direction control valve) to either one of the supply lines. These lines run along the machine to feed Lubrite dose feeders (measuring valves) mounted on the machine at a convenient position to be seen and close to the points to be Lubricated. The Dose feeders are operated by hydraulic pressure from the pump delivering a metered quality (Dose) of lubricants to the bearing being
* Recommended Grease NLGI 00, 0, 1 & 2
Control Panel

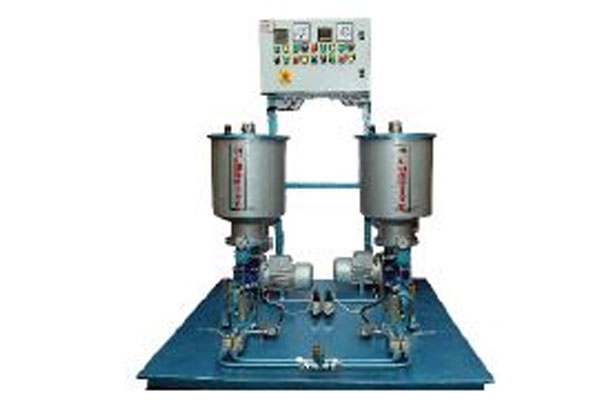

Control Panel The feature of electric control panel are :
- Main supply indication (440V Ac)
- Pump On & Off indication and switches
- Line 1 & Line 2 Separate indications
- Selectable on - off Timer
- Manual Mode (Continues Running) Auto mode (Running Through Timer)
- Lubricant Level Indication
MANUAL DUAL LINE LUBRICATION PUMPS
This is a plunger-type pump operated manually by a Lever (handle). The Pump Housing has an inbuilt spool-type Manual Line Changer, which directs the grease alternately in the two outlets. The end of each greasing cycle is indicated by a rise in pressure through the Pressure Gauge. The Pump is provided with a Grease Reservoir, which has a Follower Plate and Tale Rod to indicate the level of grease. The Pump also provided a Grease Filling Port, which can be attached to a suitable Filling Pump, for charging the Reservoir with fresh grease. The Follower Plate together with the Pump Filling Device eliminates possible formations of air pockets within the grease.
Technical Specification
| Reservoir Capacity | 5kg |
| Discharge Per Stroke | 10gm |
| Maximum Pressure | 120kg/cm2 |
| Recommended Grease | Up to NLGI-2 |
