Fittings & Tubings
Fittings & Tubings
ST Connectors
| Model | Tube Outer Dia (mm) |
Thread |
|---|---|---|
| ST4(M6) | 4 | M6X1 |
| ST4 (M6) | 4 | M6X0.75 |
| ST4 (M8) | 4 | M8X1 |
| ST4 (M10) | 4 | M 10X1 |
| ST4 1/8 | 4 | 1/8" BSP |
| ST4 1/4 | 4 | 1/4" BSP |
| ST6 (M6) | 6 | M6X1 |
| ST6 (M8) | 6 | M8X1 |
| ST6 (M 10) | 6 | M 10X1 |
| ST6 1/8 | 6 | 1/8" BSP |
| ST6 1/4 | 6 | 1/4" BSP |

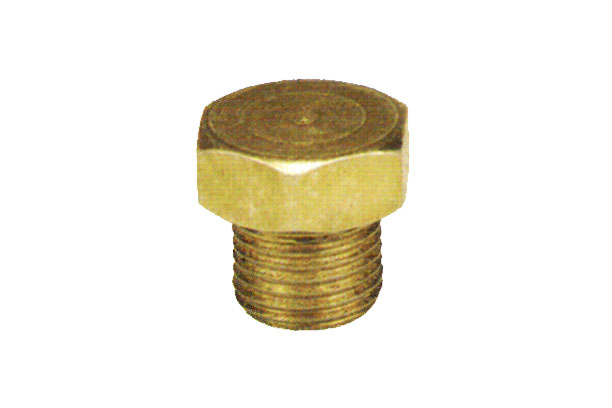

Plugs
| Model | Sealing Washer | Thread |
|---|---|---|
| P8 | W8 | M8X1 |
| P10 | W10 | M10X1 |
| P1/8 | W10 | 1/8" BSP |

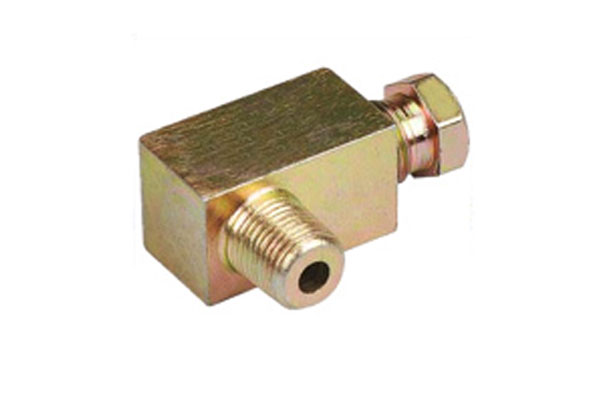

Elbow Connector
| Model | Tube O.D (mm) |
Thread |
|---|---|---|
| EC4 (M6) | 4 | M6X1 |
| EC4 (M6) | 4 | M6X0.75 |
| EC4 (M8) | 4 | M8X1 |
| EC4 1/8 | 4 | 1/8" BSP |
| EC6 (M8) | 6 | M8X1 |
| EC6 1/8 | 6 | 1/8 "BPS |
| EC6 1/4 | 6 | 1/4 "BPS |
| EC6 (M10) | 6 | M10X1 |

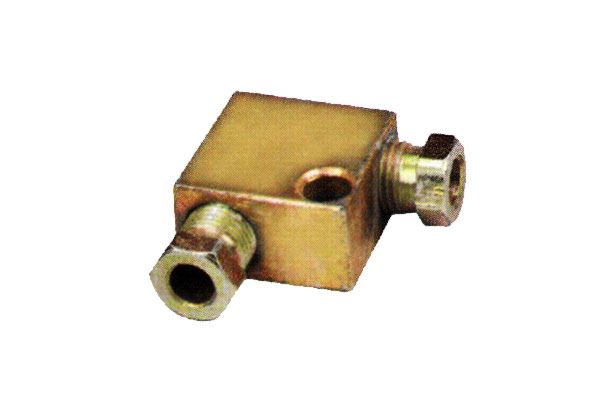

Elbow Block
| Model | Tube Outer Dia (mm) |
|---|---|
| EB 4 | 04 |
| EB 6 | 06 |

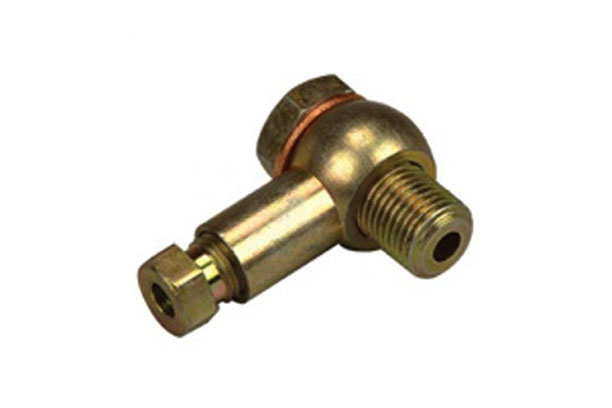

Banjo Bolt Assy. θ 4
| Model | Tube Outer Dia (mm) |
Thread |
|---|---|---|
| BA4 (M6) | 4 | M6X1 |
| BA4 (M6) | 4 | M6X0.75 |
| BA4 (M8) | 4 | M8X1 |
| BA4 (1/8) | 4 | 1/8" BSP |
| BA4 (M10) | 6 | M10X1 |
Banjo Bolt Assy. θ 6
| Model | Tube Outer Dia (mm) |
Thread |
|---|---|---|
| BA6 (1/8) | 6 | 1/8" BSP |
| BA6 (M10) | 6 | M10X1 |

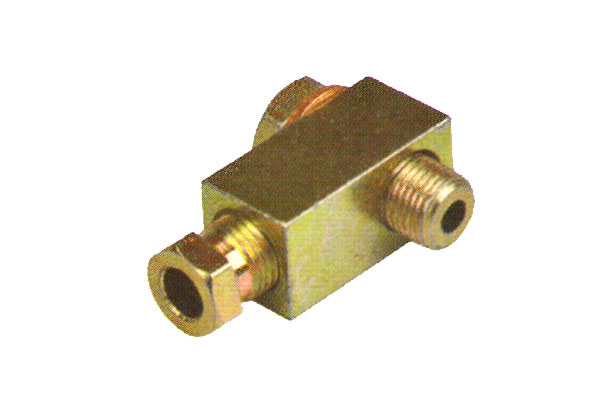

D/E Connector
| Model | Tube Outer Dia (mm) |
|---|---|
| DE4 | 4 |
| DE6 | 6 |
| DE4H | 4 |
| DE6H | 6 |

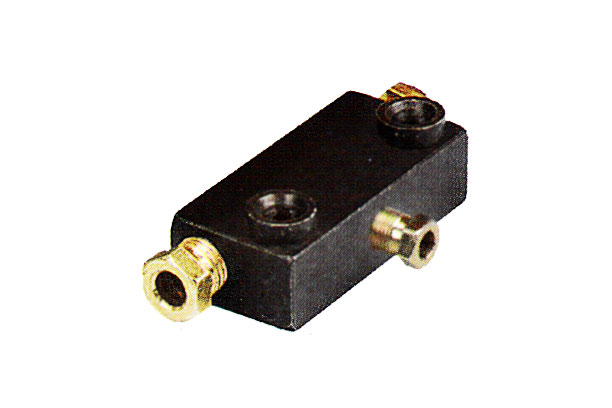

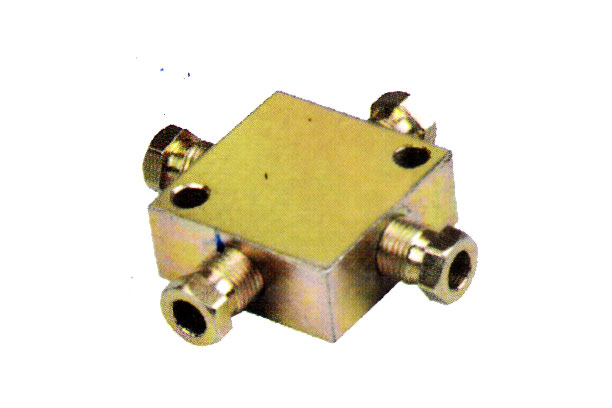

Junction Header
| Model | Tube Outer Dia (mm) |
Thread |
|---|---|---|
| JB3W | 4 | 1/8 BSP |
| JH3 | 6 | M10 |

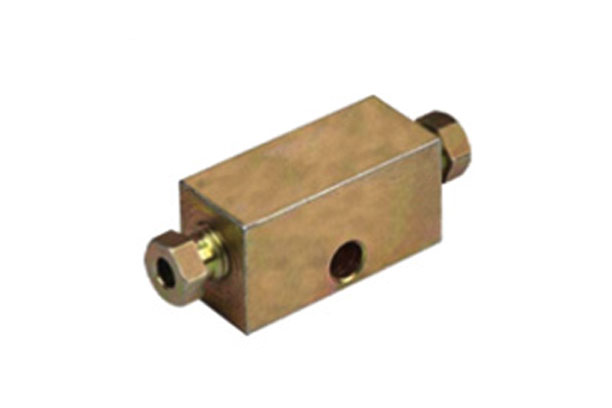

Junction Header
| Model | Tube Outer Dia (mm) |
Thread |
|---|---|---|
| JH4(4) | 4 | M8 |
| JH4 | 6 | M10 |

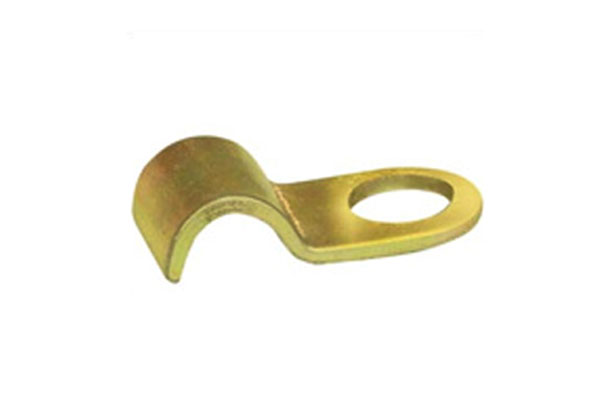

Clamps
| Model | Tube Outer Dia (mm) |
|---|---|
| CS4 | 4-SINGLE |
| CD4 | 4-DOUBLE |
| CT4 | 4-TRIPPLE |
| CS6 | 6-SINGLE |
| CD6 | 6-DOUBLE |
| CS10 | 10-SINGLE |
Bushing
| Model | Tube Outer Dia (mm) |
Thread |
|---|---|---|
| B4 M8 | 4 | M8X1 |
| B4 1/8 | 4 | 1/8" BSP |
| B6 M10 | 6 | M10X1 |

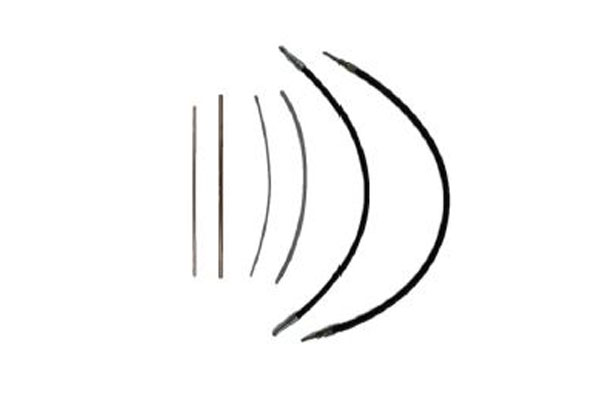

TUBINGS
Following kinds of tubes are available for single shot lubrication system :
STEEL TUBES
1. Steel Tubes : These are Copper Coated MS Seamless tubes with a thickness of 0.90mm.
a. Steel Tube 6mm OD : A Tube with 6mm OD is used for the Main Line from the pump to each junction block. It has the smallest bending radius of 22mm and permissible pressure of more than 200 kg/cm sq.
b.Steel Tube 4mm OD : A Tube with 4mm OD is used for branch line from metering cartridges to end points. It has smallest bending radius of 8mm and permissible pressure more than 200 kg/ cm sq.
| Sr. No | Model | Description |
|---|---|---|
| 1 | ST6 | Steel Tube 6mm OD |
| 2 | ST4 | Steel Tube 4mm OD |
NYLON TUBES
2. Nylon Tubes : These are semi-transparent flexible tubes of material Nylon 6. These tubes are easy to work with. These are necessary for the points, which have motion. For better tube life, it can be protected with springs available with us. The thickness of the tube is 1mm. This tube has a minimum bending radius of 70 mm and a maximum permissible operating pressure of 45kg/cm sq.
| Sr. No | Model | Description |
|---|---|---|
| 1 | NT6 | Nylon Tube 6mm OD |
| 2 | NT4 | Nylon Tube 4mm OD |
HOSE PIPES
3. Hoses : Hoses are used for points where flexibility is a must and also mechanical strength is more such as sharp edges, areas with movement of heavy components, chip falling areas in machine tools etc. These hoses are made up of synthetic rubber with textile reinforcement.
a. Hoses with 6mm OD steel ends : Hoses are supplied with re usable type end fittings, with 6mm OD round ends of 25mm length. This hose has an ID of 6.3 mm and has an operating pressure of 35 kg/cm sq.
b. Hoses with 4mm OD steel ends : Hoses are supplied with re usable type end fittings, with 4mm OD round ends of 22mm length. This hose has an ID of 4.8 mm and has an operating pressure of 28 kg/cm sq.
HOSE PIPE 4MM OD TECHNICAL SPECIFICATIONS
| Model | Description |
|---|---|
| H405m | Rubber Hose Pipe 0.5 Mtr Long Both Side 6mm Bushing & Cone |
| H41m | Rubber Hose Pipe 1.0 Mtr Long Both Side 6mm Bushing & Cone |
| H415m | Rubber Hose Pipe 1.5 Mtr Long Both Side 6mm Bushing & Cone |
| H42m | Rubber Hose Pipe 2.0 Mtr Long Both Side 6mm Bushing & Cone |
HOSE PIPE 6MM OD TECHNICAL SPECIFICATIONS
| Model | Description |
|---|---|
| H605m | Rubber Hose Pipe 0.5 Mtr Long Both Side 6mm Bushing & Cone |
| H61m | Rubber Hose Pipe 1.0 Mtr Long Both Side 6mm Bushing & Cone |
| H615m | Rubber Hose Pipe 1.5 Mtr Long Both Side 6mm Bushing & Cone |
| H62m | Rubber Hose Pipe 2.0 Mtr Long Both Side 6mm Bushing & Cone |
