Centralised Lubrication Systems

Grease Radial Pumps

In LUBRITE Grease Radial Pump the Grease injectors are working as pumping unit. Each pumping unit is independent and is actuated by a cam through a Gear Box. The gear box is driven by a Electric Motor. These pumping units are mounted around the Housing of Radial Pump. The pump In-corporate a large Reservoir with Follower Plate and Tell Tale Rod. The Pump may rotate in either direction; Grease is pushed down wards with the Follower Plate and Stirrer Assy. Limit Switch is provided on the top of Reservoir to indicate low level of grease in the Pane Box.

LRGP 24 V DC

LRGP 7 (4)

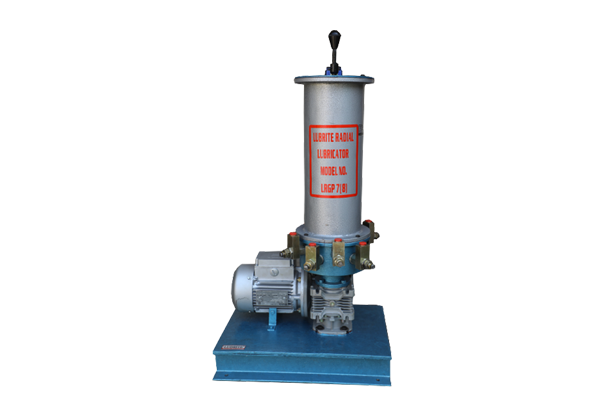

LRGP 7 (8)

Specification/Model	LRGP 24 V DC	LRGP 7	LRGP 20	LRGP 50
Reservoir Capacity	3 Kg	7 Kg	20 Kg	50 Kg
Electric Motor	24 V DC	0.25 HP, 3.0 H, 4.5 V AC	0.5 HP, 3.0 H, 4.5 V AC	1.0 HP, 3.0 H, 4.5 V AC
Max. No. of Pumping Units	2	6	12	24
Max. Pressure of Pumping Units	300 Bar	300 Bar	300 Bar	300 Bar

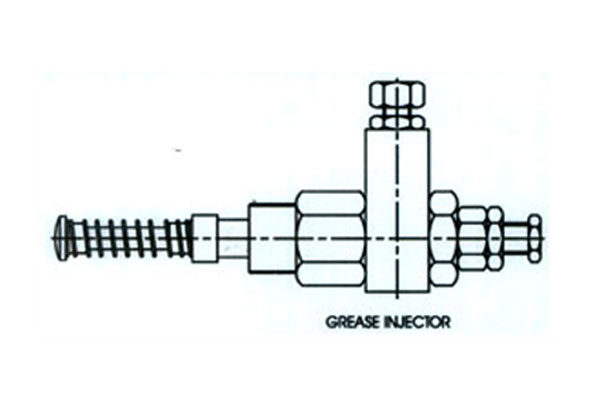

Grease Injector

Every Grease Injector deliver 0~0.3 cc (Max.) Grease per stroke. Grease Injector's tightening/loosing the Check Value Adjustment Screw. Change of the units can be effected without dismantling the pump. Do not remove or replace Grease Injectors while pump is Working.

* Recommended Grease NLGI 00, 0, 1 & 2

MOTORISED GREASE TRANSFER PUMPS

LUBRITE grease filling gear pump is designed for Transferring grease from a barrel to the reservoir of centralised grease lubricating station. The pump which is mounted at the bottom of a long barrel , is driven by a flange mounted motor placed at the top. The inline grease filter is provided along with hose for delivering grease.

* Recommended Grease NLGI 00, 0, 1 & 2

Delivery of pump	200kg/hour
Working Pressure	15kg/sq.cm
Electric Motor	3ph. 1hp, 1500rpm
