OIL FLOW METER’S (OFM)
OIL FLOW METER’S (OFM)
Lubrite's Oíl Flow Meter is the most essential part of the LRU system as the performance of the complete system depends on the rotameters. These units are installed on the Paper Machine, Gearboxes of Rolling Mills and any type of machinery where oil is circulated continuously to regulate the flow of oil in each lubrication point. It consists of an adjustable Throttle Value, Float Indicator & Float Assembly. As the flow indicator is made of polycarbonate, the flow rate can be easily visualized with the movement of the float. Rotameters are available in different flow ranges as per requirement. Electric sensing can also be provided if required.
MANIFOLD ASSEMBLY SMALL WITHOUT VISUAL INDICATION
| Model | DESCRIPTION | PORT SIZE | |
|---|---|---|---|
| INLET | OUTLET | ||
| 111WT | Manifold Assembly: 1 Outlet With Flow Adjustment |
3/8” BSP | 1/4” BSP |
| 121WT | Manifold Assembly: 2 Outlet With Flow Adjustment |
3/8” BSP | 1/4” BSP |
| 131WT | Manifold Assembly: 3 Outlet With Flow Adjustment |
3/8” BSP | 1/4” BSP |
| 141WT | Manifold Assembly: 4 Outlet With Flow Adjustment |
3/8” BSP | 1/4” BSP |

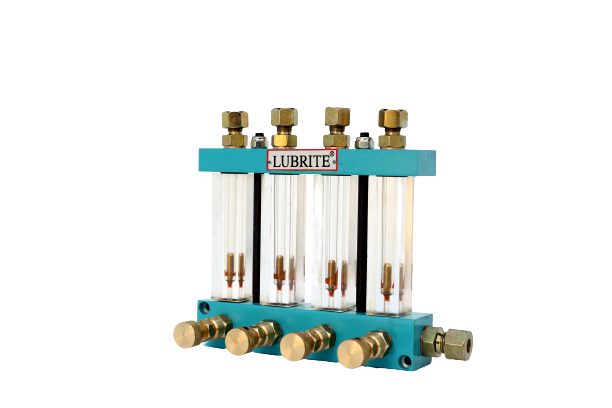

MANIFOLD ASSEMBLY SMALL WITH VISUAL INDICATION
| Model | DESCRIPTION | PORT SIZE | |
|---|---|---|---|
| INLET | OUTLET | ||
| OFM14 | Manifold Assembly: 1 Outlet With Flow Adjustment & Visual Indication |
3/8” BSP | 1/4” BSP |
| OFM24 | Manifold Assembly: 1 Outlet With Flow Adjustment & Visual Indication |
3/8” BSP | 1/4” BSP |
| OFM34 | Manifold Assembly: 1 Outlet With Flow Adjustment & Visual Indication |
3/8” BSP | 1/4” BSP |
| OFM44 | Manifold Assembly: 1 Outlet With Flow Adjustment & Visual Indication |
3/8” BSP | 1/4” BSP |

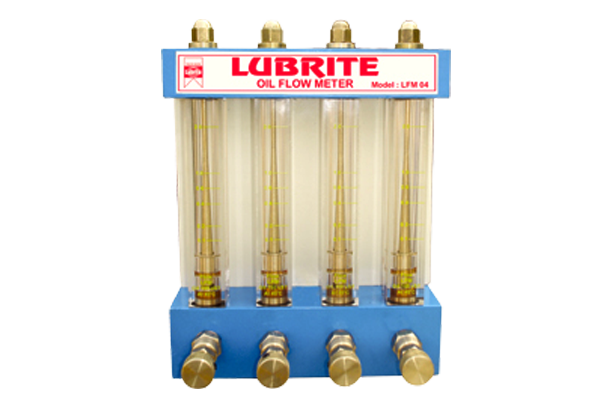

MANIFOLD ASSEMBLY BIG WITH VISUAL INDICATION - ROTAMETER TYPE
| Model | DESCRIPTION | PORT SIZE | |
|---|---|---|---|
| INLET | OUTLET | ||
| 11200 | Manifold Assembly: 1 Outlet With Flow Adjustment – 0.1 To 2 Lpm & Visual Indication |
1/2” BSP | 3/8” BSP |
| 12200 | Manifold Assembly: 1 Outlet With Flow Adjustment & Visual Indication |
1/2” BSP | 3/8” BSP |
| 13200 | Manifold Assembly: 1 Outlet With Flow Adjustment & Visual Indication |
1/2” BSP | 3/8” BSP |
| 14200 | Manifold Assembly: 1 Outlet With Flow Adjustment & Visual Indication |
1/2” BSP | 3/8” BSP |
