Lubrication Timers & Controllers
Lubrication Timers & Controllers

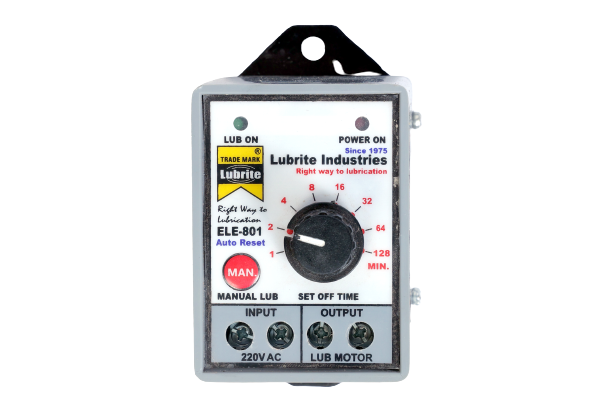

ELECTRONIC TIMERS
Electronic Timers are used to maintain the Lubrication cycle in automatic single shot Lubrication Units. It is basically ON - OFF timer with following technical specification.
- Suitable for direct running of Single phase motors of Lubrication Units : LAU-03 SFS, LAU-03SFT, LDU-03 SFS & LDU 03 SFT
- Suitable for 3 phase Units where pressure switch is not present such as LAU-03 FS, LAU-05FS, LAU-08FS. however a contactor is to be used in this case.
- Suitable for solinoid operation of direction control valve with pneumatic oil pump like PNU3000FS, PNU1600 & PNU 800
| Power Supply | 220 V AC + - 10%, 50 Hz |
|---|---|
| Operating Temperature | 0-55° C. |
| Maximum Power Consumption | 2.0 VA |
| Control Action | On Off Type. |
| OutPut | 220 V AC |
| Start | Automatic On output when power is turned On |
| Switch For Lub Shot | Yes |
| Application | provides On - Off action of Lubricator Motor |
ET - 5
- Suitable for direct running of Single phase motors of Lubrication Units : LAU-03 SFS, LAU-03SFT, LDU-03 SFS & LDU 03 SFT
- Suitable for 3 phase Units where pressure switch is not present such as LAU-03 FS, LAU-05FS, LAU-08FS. however a contactor is to be used in this case.
- Suitable for solinoid operation of direction control valve with pneumatic oil pump like PNU3000FS, PNU1600 & PNU 800

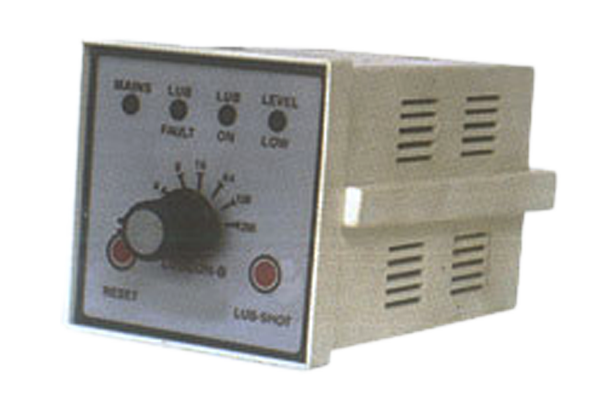

ELECTRONIC CONTROLLER
Electronic Controller can also be used to ON-OFF the Motorised units. This device maintains the lubrication cycle as well as monitors the operation of float Switch and Pressure switch at the same time. Electronic Controllers are suitable for units such as : LAU-03FPS, LAU-05 FPS, LAU-08 FPS & LDU-03 FPS However,contactor is to be used in this case. Fault relay contacts can also be used for audio / Visual commands or for interlocking the machine in case of lubrication failure. In case arrangement for contactor is not possible, ECC-5 can be used. It is a complete solution with in built controller and contactor.
| On Time | 5 Sec Fixed |
|---|---|
| Off Time | Selectable 1-128 minutes |
| Off Time Setting | By Knob |
| Start | Motor Relay On when power is turned on. |
| Reset | By Pushing the Button Rest. |
| Repeat Accuracy | +-10% |
| Operating Temperature | 0-55°C |
| Maximum Power Consumption | 3 VA |
| Contact Rating | (a) Motor Relay : One potential free NO contact 2 amp non indicative at 220V AC
(b) Fault Relay : One potential free change contact 2 amp non indicative at 220V AC |
| Lub Shot Facility | A lub shot switch parallel to relay contacts provides extra lubrication as and when required |
| Monitoring of Oil Pressure | case pump fails to develop pressure even in 60 seconds. |
| Monitoring of Oil Level | LED Low OIL Flickers when oil level in the reservoir goes below the Float Switch. |
ET - 5
