Manual Grease Pumps

Manual Grease Pumps

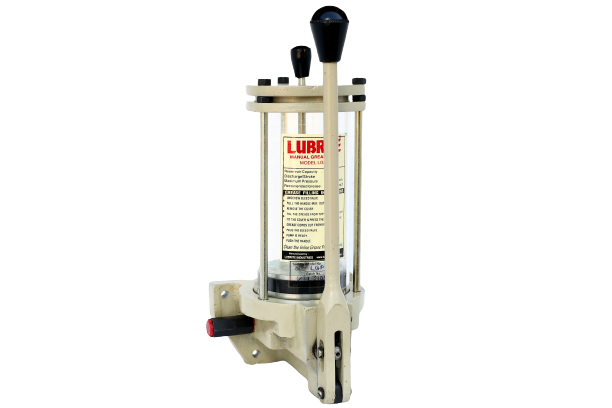

Lubrite Manual Grease Pumps are meant to deliver grease to the bearings and other moving parts of the various machines.

These Pumps suck the grease through Suction Port by pulling the handle maximum out & eject determined amount of grease under pressure when the handle is pushed back.

These pumps are wall mounted and should be installed in vertical position at a place conveniently accessible to the operator.

These pumps have outlet ports of 1/4" BSP on both sides. Lubrication line can be taken from either of the outlets through Check valve Assembly and other outlet is to bleed the entrapped air in the grease through Bleed valve.

Gun filler attachment is recommended for refilling the reservoir of the pump with grease to avoid air locks or risk of contamination of grease from foreign matter.

Technical Specification

	LGP-05	LGP-15	LGP-50
Reservoir Capacity	0.5 kg	1.5 kg	5.0 kg
Discharge Per Stroke	2.5 gm	5.0 gm	10.0 gm
Maximum Pressure	70 kg/ sq.cm.	100 kg / sq.cm	120 kg / sq
Overall Dimension	110X105X315 MM	160X135X500 MM	260X290X1000 MM
Mounting Details	90X45X40 MM	135X65X70 MM	160X30 MM

LGP - 50 : These are heavy-duty Grease Pumps and are used where the total no. of points are more than 20 or the lubrication lines are lengthy.

To avoid the extra load on operator, the handle of the Pump is extra long and is equipped with Lever system. When the handle is pushed, grease is sucked from the reservoir and is ejected under pressure by pulling the handle out.

These Pump are wall mounted and should be installed vertically at a place conveniently accessible to the operator.

In case of Plant Lubrication with various machines, the distributors or Progressive Blocks are mounted on each machine and the pump is mounted on the trolley to lubricate the plant with the help of Flexible Hose Pipe and Quick Release Coupling.

* Recommended Grease NLGI 00, 0, 1 & 2
