Junction Blocks/Manifolds
Junction Blocks/Manifolds

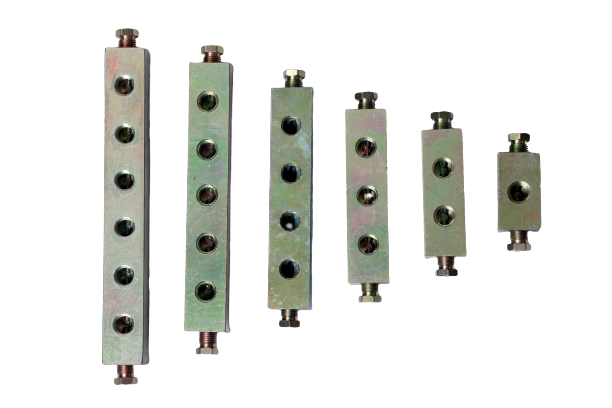

Lubrication line from Pump is further connected to the side port of the junction Block and the other side port is meant for joining the next Junction Block in line with 6mm OD tube. Metering Cartridges are directly screwed on top outlets of Junction Blocks.
Type of Junction Block is selected depending upon the metering cartridges to be fitted. A junction Block should cater all the lubrication points lying in the same vicinity.
Technical Specification

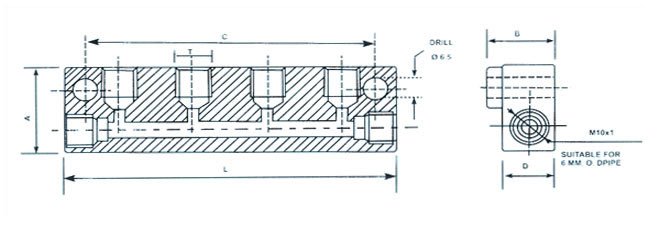

| Model | Length (L) | Centre (C) | Thread (T) | A | B | D |
|---|---|---|---|---|---|---|
| JB1 | 51 | 37 | M8X1 | 24 | 18 | 14 |
| JB2 | 51 | 37 | M8X1 | 24 | 18 | 14 |
| JB3 | 70 | 56 | M8X1 | 24 | 18 | 14 |
| JB4 | 89 | 75 | M8X1 | 24 | 18 | 14 |
| JB5 | 108 | 94 | M8X1 | 24 | 18 | 14 |
| JB6 | 127 | 113 | M8X1 | 24 | 18 | 14 |
| JB7 | 146 | 132 | M8X1 | 24 | 18 | 14 |
| JB8 | 165 | 151 | M8X1 | 24 | 18 | 14 |
| JB1 (3) | 65 | 50 | M10X1 | 22 | 22 | 22 |
| JB2 (3) | 65 | 50 | M10X1 | 22 | 22 | 22 |
| JB3 (3) | 90 | 75 | M10X1 | 22 | 22 | 22 |
| JB4 (3) | 115 | 100 | M10X1 | 22 | 22 | 22 |
| JB5 (3) | 140 | 125 | M10X1 | 22 | 22 | 22 |
| JB6 (3) | 165 | 150 | M10X1 | 22 | 22 | 22 |
